Ethyl Cyanoacrylate Adhesive ethyl ca

This series of products are effective for rapid and effective adhesion on dry, porous, low-surface-energy materials or acidic surfaces, or in low-humidity environments.

They are suitable for automated production lines of continuous assembly operations. For materials that are difficult to bond to, most adhesives struggle to bond effectively.

Therefore, before operation, it should be confirmed whether the materials to be bonded belong to the category of difficult-to-bond materials.

Usage Feartures Specifications
Ethyl Cyanoacrylate Adhesive
Ethyl Cyanoacrylate Adhesive

Usage

  • Easy to operate
  • Does not increase the weight of the parts
  • Reduces machining costs
  • Decreases curing time
  • Simplifies cleaning of material surfaces
  • Enables rapid positioning and securing of parts
  • Broadly applicable for bonding between different types of materials
  • Exhibits good bonding effect on most substrates

Characteristics

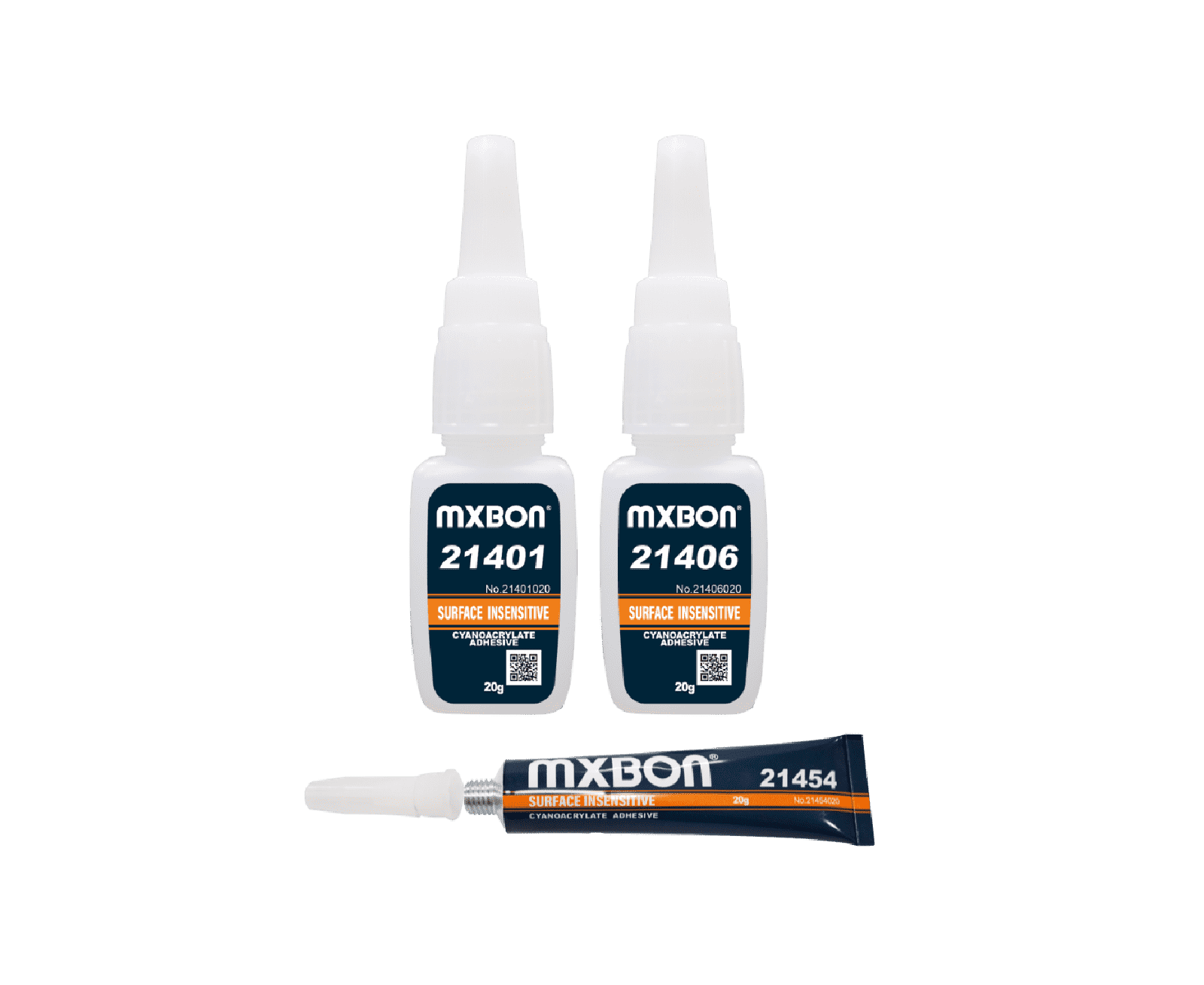

  • 21401

    Low viscosity, resistant to 121°C heat, surface insensitive

    Transparent and colorless, rapid curing.

    Suitable for adhesion of most materials.

    Especially for bonding to insensitive surfaces and low energy surfaces.

  • 21406

    Ultra low viscosity, resistant to 121°C heat, surface insensitive

    Transparent and colorless, rapid curing.

    Suitable for post-assembly application of adhesive for capillary infiltration adhesion.

    Especially for bonding to insensitive surfaces and low energy surfaces.

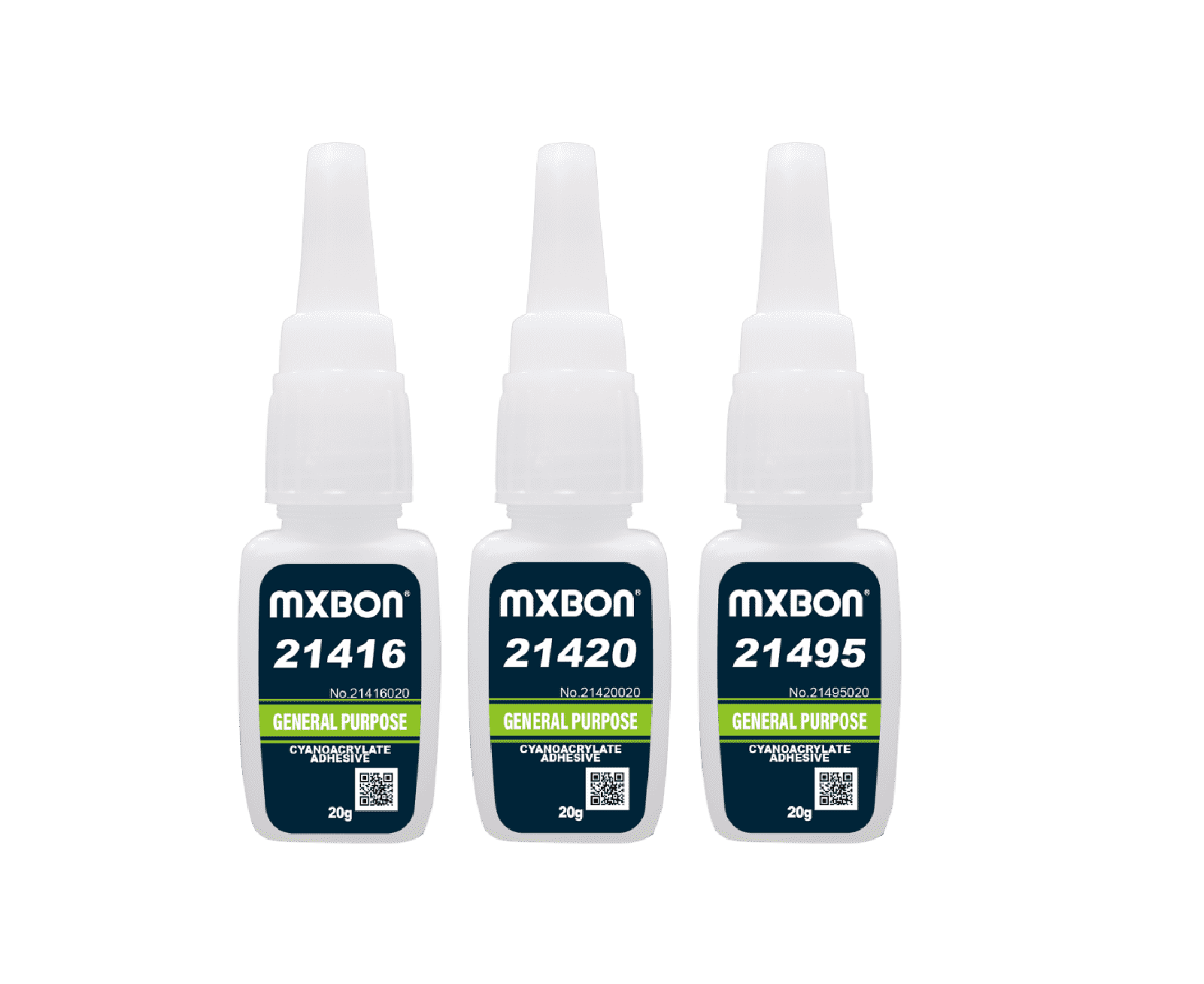

  • 21416

    Medium viscosity, general purpose, seam-filling capabilities

    Can be used for gap bonding of 0.2mm.

    Suitable for bonding rough or irregular surfaces.

    Especially suitable for adhesion between plastic and rubber.

  • 21420

    Ultra low viscosity, penetration type, rapid curing

    Suitable for post-assembly application of adhesive for capillary infiltration adhesion.

    Especially suitable for adhesion between plastic and rubber.

  • 21454

    Gel-like, resistant to 121°C heat, surface insensitive

    Transparent and colorless, rapid curing.

    Suitable for vertical surface adhesion and filling of large gaps.

    Suitable for adhesion of most materials .

    Especially for bonding to insensitive surfaces and low energy surfaces.

  • 21495

    Low viscosity, resistant to 121°C heat, general purpose

    Low viscosity, rapid curing, high temperature resistant.

    Suitable for adhesion of most materials.

    Especially suitable for adhesion between plastic and rubber.

Technical Information

Item No. Appearance Viscosity
mPa.s 		Shear Strength
N/m㎡ (Psi) 		Temperature
Range (℃) 		Tg
(℃) 		(Shore D) Fixture time (sec)
MS AL ABS PC NBR
21401 Transparent 80-150 28
(4,036)		 -54℃-121℃ 150℃ D 85 <10 <10 <5 <10 <10
21406 Transparent 15-40 26
(3,803)		 -54℃-121℃ 150℃ D83 <10 <10 <5 <15 <15
21416 Transparent 900-1,500 25
(3,637)		 -54℃-100℃ 150℃ D84 <25 <30 <40 <20 <10
21420 Transparent 1-5 26
(3,758)		 -54℃-100℃ 150℃ D84 <25 <20 <20 <30 <10
21454 Clear to slightly cloudy gel 150,000-200,000 25
(3,680)		 -54℃-121℃ 150℃ D84 <5 <20 <5 <15 <5
21495 Transparent 20-60 27
(3,877)		 -54℃-121℃ 150℃ D83 <10 <10 <5 <15 <15
