Special Functionality Cyanoacrylate Adhesive special functionality ca
MXBON series also addresses bonding needs in challenging high-temperature and high-humidity environments.
Usage
It is suitable for industrial applications in
- Thermal motors
- Automobile engines
- Waterproof decorative strips
- Filters, electric furnaces
- Ovens
- Loudspeakers
As well as in the electronics industry for assembly and bonding of products like disk drives, high-speed precision motors, and circuit boards.
Characteristics
-
21382
High viscosity, high strength, PCB jumper wire fixing
Can be used for 0.2mm gap filling temperature resistance up to 100°C.
Used in conjunction with MXBON accelerator for PCB wire jumper bonding.
Used in conjunction with MXBON accelerator for thermocouple temperature wire bonding.
-
21402
Medium viscosity, high strength, resistance to high temperature 135°C
Transparent and rapid curing, compatible with most plastics.
Ideal for long-term high-temperature environments, heat-resistant up to 135°C.
Excellent moisture resistance and anti-aging properties.
Particularly effective for bonding metal to rubber and high-temperature plastics like PC-ABS, Nylon in assembly. -
21919
Low viscosity, medium to high strength, resistance to high temperature 150°C
Colorless to slightly yellow, rapid curing.
Ideal for long-term high-temperature
environments, heat-resistant up to 150°C.
Suitable for bonding most materials. -
24919
Low viscosity, medium to high strength, resistance to high temperature 180°C
Colorless to slightly yellow, rapid curing.
Ideal for long-term high-temperature environments, heat-resistant up to 180°C.
Suitable for bonding most materials.
Designed with a secondary curing mechanism that is activated at temperatures higher than 150°C (302°F) -

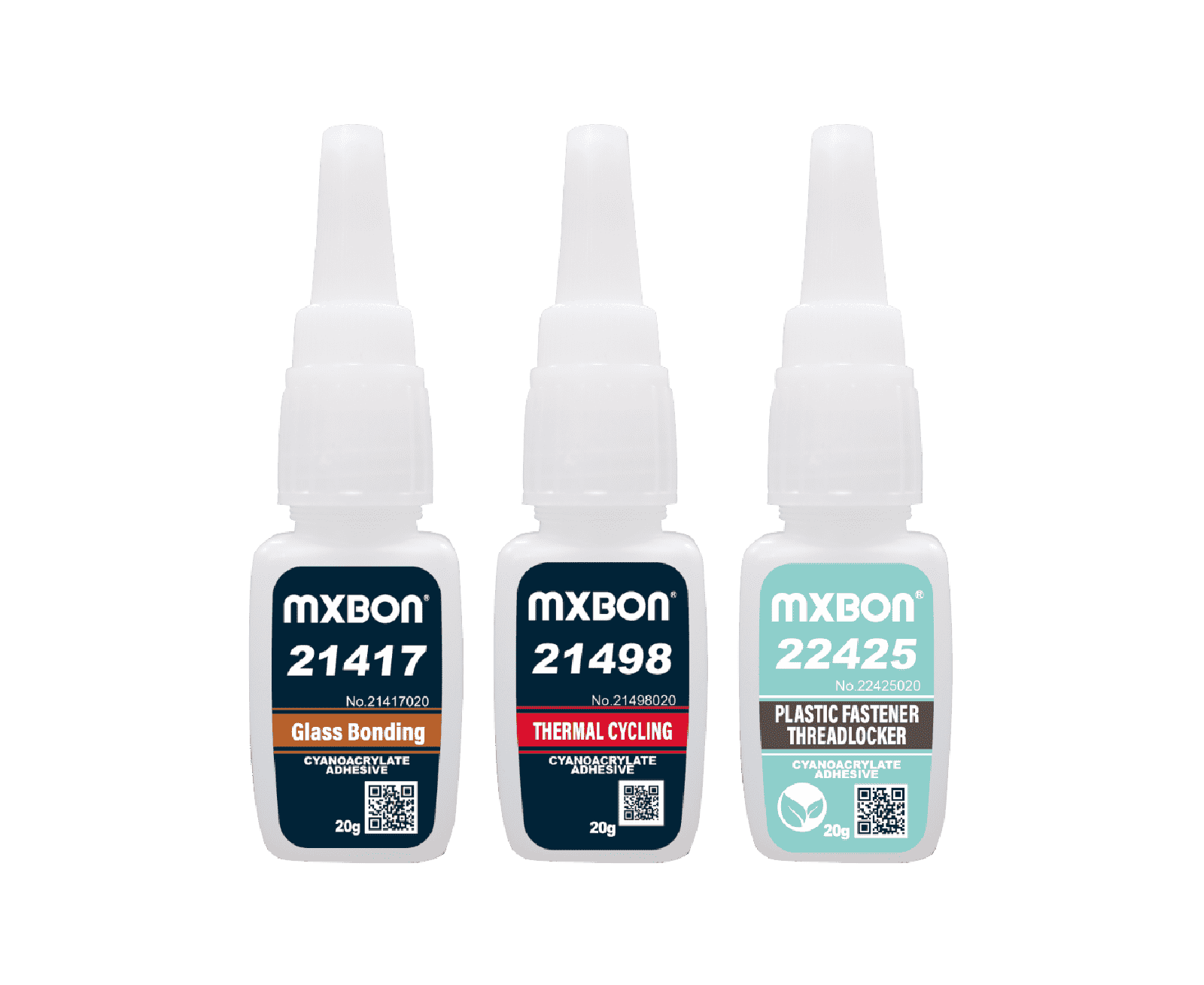

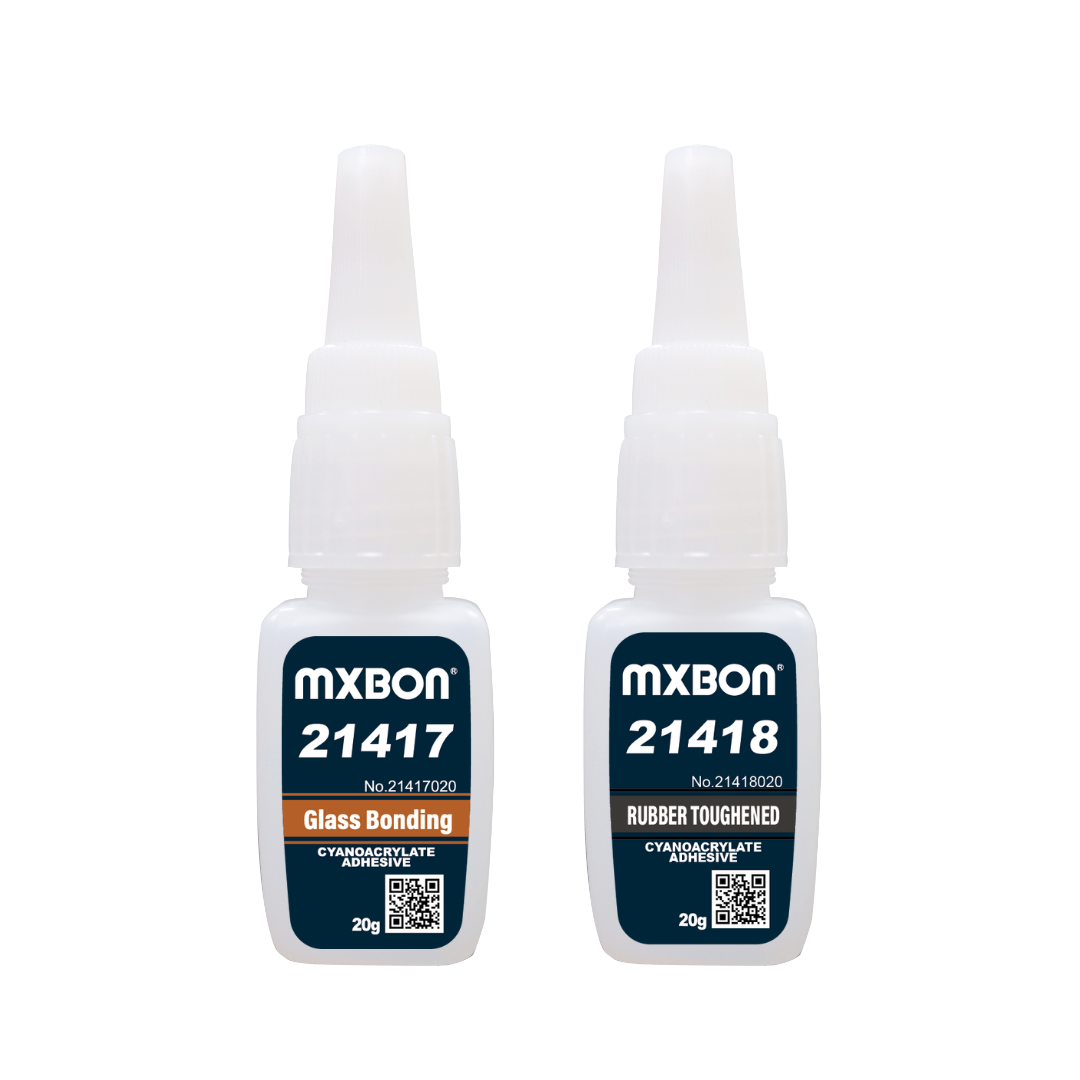

21417
Low viscosity, transparent, low strength, temporary fixing
Specifically targeted for temporary adhesion applications between metal and glass.
Suitable for applications requiring minimal bonding strength.
Bonded parts can be separated by soaking in solvent or heating.
-
21418
Black, high viscosity, heat resistant to 107℃, rubber toughened, metal bonding
Heat and humidity-resistant, shock and vibration resistant, highly flexible.
Excellent impact strength, peel strength, and high shear strength.
Especially suitable for adhesion between metal rubber, and plastic. -
21498
Medium viscosity, heat resistant circulation
Intermittent temperature resistance and heat cycle resistance up to 100°C.
Excellent moisture resistance and aging resistance.
Especially suitable for the adhesion between metal, plastic, and rubber.
-

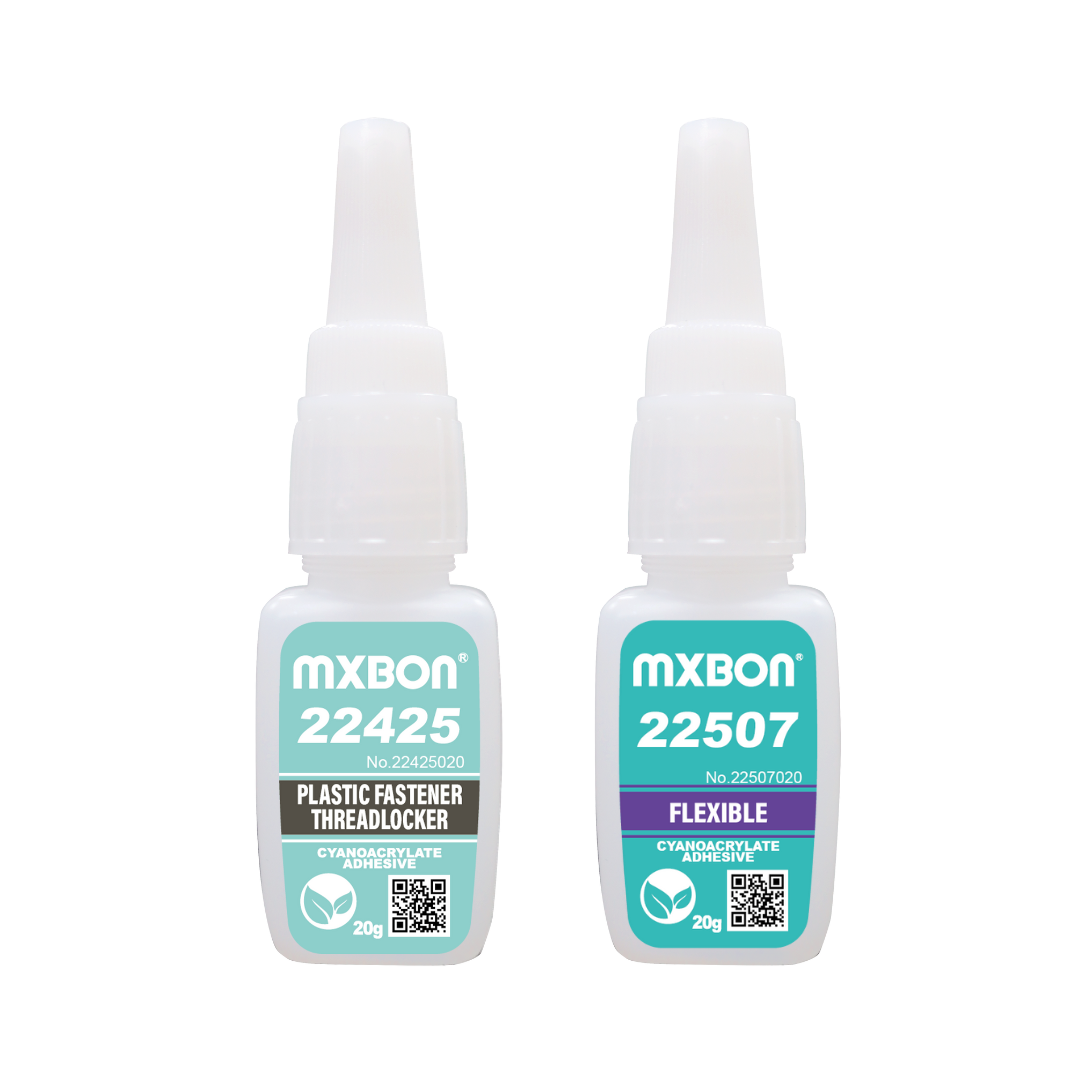

22425
Blue, Low viscosity, for electronic product plastic screws, low odor, low blooming
Blue, low strength screw locking agent.
Suitable for fasteners paired with metal and plastic.
Ideal for securing screw fastenings in electronic products.
Suitable for tamper-proofing and marking electronic components.
-
22507
Medium to low viscosity, high strength, resistant to 100°C high temperature, low odor, low blooming
Transparent and colorless, with good sealing properties.
Flexible, able to buffer stress deformation of substrates.
Particularly suitable for bonding TPE thermoplastic elastomer hoses to rigid plastics.
Medium-strength bonding achievable with inactive and low surface energy materials.
Technical Information
| Item No. | Appearance |
Viscosity mPa.s |
Shear Strength N/m㎡ (Psi) |
Temperature Range (℃) |
Tg (℃) |
(Shore D) | Fixture time (sec) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MS | AL | ABS | PC | NBR | |||||||
| 21382 | Transparent | 3,500-8,500 | 30 (4,335) |
-54℃-100℃ | 150℃ | D 85 | <20 | <25 | <30 | <20 | <10 |
| 21402 | Transparent | 500-800 | 28 (4,037) |
-54℃-135℃ | 120℃ | D 85 | <60 | <60 | <10 | <60 | <10 |
| 21919 | Colorless to slightly yellow | 2-6 | 24 (3,428) |
-54℃-150℃ | - | D 80 | <50 | - | <20 | <40 | <20 |
| 24919 | Colorless to slightly yellow | 2-6 | 20 (2,824) |
-54℃-180℃ | - | D 80 | <50 | - | <20 | <40 | <20 |
| 21417 | Colorless to yellowish colored liquid | 3-8 | 3 (422) |
-54℃-100℃ | 150℃ | D 70 | - | - | - | - | - |
| 21418 | Black | 1,500-4,000 | 22 (3,198) |
-54℃-107℃ | 120℃ | D 55 | <120 | <40 | <60 | <90 | <30 |
| 21498 | Clear to slightly cloudy gel | 400-600 | 26 (3,786) |
-54℃-100℃ | 150℃ | D 84 | <25 | <20 | <15 | <20 | <10 |
| 22425 | Transparent, dark violet colored liquid | 250-450 | NA | -54℃-100℃ | 150℃ | D 82 | <5 | <5 | <5 | <10 | <15 |
| 22507 | Transparent | 200-300 | 24 (3,541) |
-54℃-100℃ | 150℃ | D 74 | <5 | <5 | <5 | <10 | <15 |
